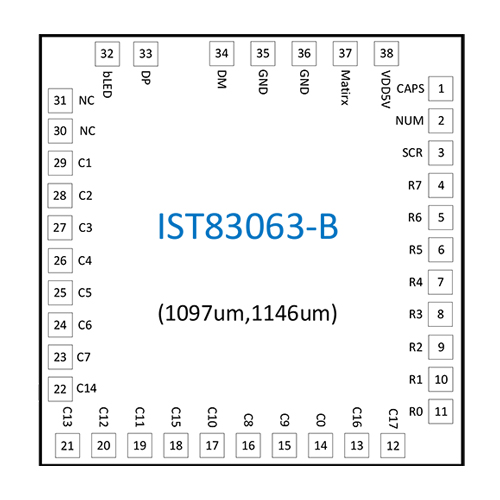

IST83063/IST83063C and IST83063-B/IST83063C-B are completely identical in terms of functionality, array, and application circuits, with differences only in PAD coordinates, definitions, and chip area.
In terms of DC electrical parameters, the operating current of IST83063-B/IST83063C-B is lower, while other parameters are the same.
Chip Model | IST83063-B |
Communication Interface | USB 1.1 (Low-speed) |
Array | 18×8 (3 types of arrays) (6-key rollover) |
Conductive Film / Keys | Silver paste |
Backlight Effects | Single color (8 brightness levels) |
Encoder | Not supported |
Fn combination keys | Support |
Driver | Not supported |
Macro definition | Not supported |
Copilot(AI) | Not supported |
Operating Voltage (V) | 4.5-5.5 |
Operating Current (mA) | 2.6 |
Package Type | Dice |
